Wholesale U-FLEX Manufacturer and Supplier

U-FLEX

Short Description:

Application:

It used to absorb the movements caused by the potential break downs and depressions especially where the seismic movements may cause hazardous results.

Normal Size: DN15-DN300mm

Certificate: FM Approved

Send email to us Download as PDF

Product Detail

Product Tags

Product Description

Model：EHUT /EHUG /EHUF U-Flex

EHUT Threaded Type

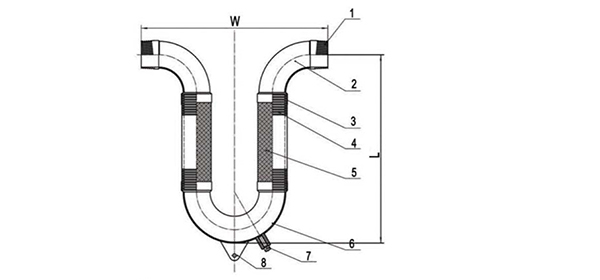

Construction:

Item	Parts	Material	Remark
1	Threads	Carbon Steel	SUS304/316/321 PT/NPT.
2	90° Elbow	Carbon Steel	SUS304/316/321
3	Seal Ring	SUS304	SUS316/321
4	Bellows	SUS304	SUS316/321
5	Braids	SUS304
6	180° Elbow	Carbon Steel	SUS304/316/321
7	Weep Hole	Carbon Steel	SUS304/316/321
8	Fixing Holder	Carbon Steel	SUS304/316/321

Specification:

Norminal Bore		L	W	Movement	Working Pressure
ins	mm	(mm)	(mm)	(mm)	(psi)
1/2	15	350	250	150	200
3/4	20	380	260	150	200
1	25	380	260	150	200
1 1/4	32	420	300	150	200
1 1/2	40	480	350	150	200
2	50	600	420	150	200

The size, pressure and movement tabulated above are standard. We can design and manufacture as required.

EHUG Grooved Type

Construction:

Item	Parts	Material	Remark
1	Grooved Tube End	Carbon Steel	SUS304/316/321
2	90° Elbow	Carbon Steel	SUS304/316/321
3	Seal Ring	SUS304	SUS316/321
4	Bellows	SUS304	SUS316/321
5	Braids	SUS304
6	180° Elbow	Carbon Steel	SUS304/316/321
7	Weep Hole	Carbon Steel	SUS304/316/321
8	Fixing Holder	Carbon Steel	SUS304/316/321

Specification

Norminal Bore		L	W	Movement	Working Pressure
ins	mm	(mm)	(mm)	(mm)	(psi)
2	50	600	420	150	200
2 1/2	65	700	540	150	200
3	80	750	600	150	200
4	100	875	750	150	200
5	125	1000	900	150	200
6	150	1150	1050	10	200
8	200	1400	1100	150	200
10	250	1545	1300	150	200
12	300	1720	1520	150	200

The size, pressure and movement tabulated above are standard. We can design and manufacture as required.

EHUF Flanged Type

Construction:

Item	Parts	Material	Remark
1	Flange	Carbon Steel	SUS304/316/321
2	Tube	Carbon Steel	SUS304/316/322
3	90° Elbow	Carbon Steel	SUS304/316/321
4	Seal Ring	SUS304	SUS316/321
5	Bellows	SUS304	SUS316/321
6	Braids	SUS304
7	180° Elbow	Carbon Steel	SUS304/316/321
8	Weep Hole	Carbon Steel	SUS304/316/321
9	Fixing Holder	Carbon Steel	SUS304/316/321

Specification:

Norminal Bore		L	W	Movement	Working Pressure
ins	mm	(mm)	(mm)	(mm)	(psi)
2	50	600	400	150	200
2 1/2	65	700	500	150	200
3	80	750	570	150	200
4	100	875	720	150	200
5	125	1000	900	150	200
6	150	1150	1050	150	200
8	200	1450	1100	150	200
10	250	1800	1200	150	200
12	300	2200	1400	150	200

The size, pressure and movement tabulated above are standard. We can design and manufacture as required.

Flanges: JIS, ANSI, DIN, BS, JB. Etc.

Details:

1.Excellent Welding Technology,like a fish swimming in water.

2.Omage Bellows,More flexible and longer service life.

3.100 % Tested Before Delivery.

Products

Certificate

Company Information

Supply Ability: 100000 Pieces per Year.

Shipping & Delivery

Packaging Details:Carton Box, Pallet or Plywood Case; As Customer’s Requirement.
No Unacceptable Packaging Material or Bamboo Products Been Used as Packing.
