Low price for Fire Sprinkler Dropper - EH-400BW Flexible Joint – Ehase-Flex Detail:
Overview
Place of Origin: | Zhejiang, China | Brand Name: | EHASE-FLEX |
Model Number: | EH-400BW | Material: | Stainless Steel |
Connection: | Flange | Technics: | Welded Braided Hose, Flange Braided Hose |
Shape: | Equal, Braided Hose Connector | Head Code: | Round |
Size: | DN15-DN1800 | Standard: | EJMA |
Flange Standard: | ANSI, BS, GB, JIS, DIN… | Certificate: | ISO 9001,FM |
Temperature Rating: | Max 1000℃ | Rated Working Pressure: | 10bar,16bar, 25bar, 40bar, 63bar, 100bar |
Application: | Flange Braided Hose Link pump, absorbing vibration | Bellows: | OMEGA |
Supply Ability: 5000 Piece/Pieces per Month Flange Braided Hose
Packaging & Delivery
- Packaging Details: Carton Box, Pallet, or Plywood Case
NO Unacceptable Packaging Material or Bamboo Products been Used as Packing for Flange Braided Hose
- Port: Shanghai / Ningbo or Any Port in China
Construction:
Item |
Parts |
Material |
Remark |
1 |
Bellows |
SUS304 |
SUS316/321 |
2 |
Flanges |
SS400 |
SUS304/316/321 |
3 |
Seal Rings |
SUS304 |
SUS316 |
4 |
Wire Braids |
SUS304 |
|
5 |
Tube Ends |
SS400 |
SUS304/316/321 |
Specification:
Nominal Bore |
Total Length |
Bellows O.D. |
Working Pressure |
|
ins |
mm |
mm |
mm |
kg/cm² |
11/4 |
32 |
400 |
49.0 |
16 |
11/2 |
40 |
400 |
58.5 |
16 |
2 |
50 |
400 |
74.0 |
16 |
11/2 |
65 |
400 |
91.0 |
16 |
3 |
80 |
400 |
105 |
16 |
4 |
100 |
400 |
132 |
16 |
5 |
125 |
400 |
163 |
16 |
6 |
150 |
400 |
194 |
16 |
8 |
200 |
400 |
252 |
16 |
10 |
250 |
400 |
312 |
16 |
12 |
300 |
400 |
366 |
16 |
•The size, total length, max offset and pressure tabulated above are standard. We can produce products according requirements.
•Flange Standard: JIS, ANSI, DIN, B.S., etc.

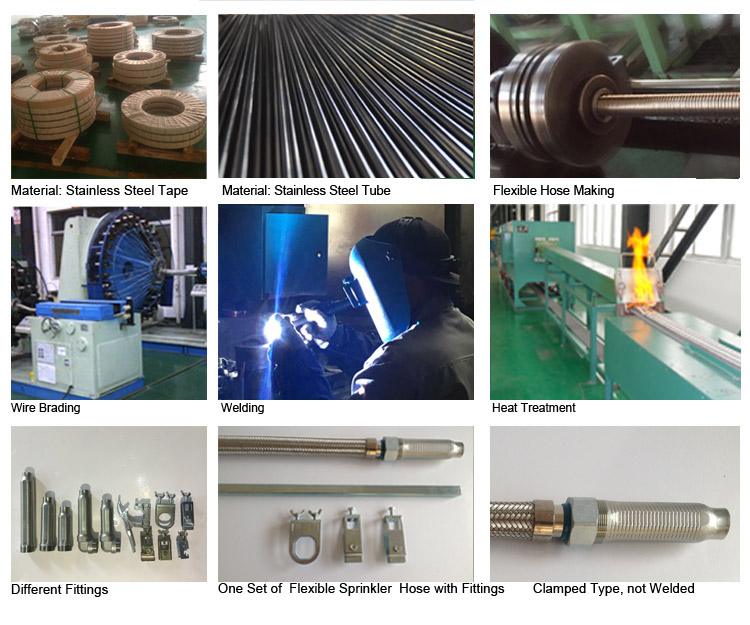

Production Capacity
Flexible Sprinkler Hoses: 350,000pcs per Month
Flexible Joints/ Expansion Joints: 80,000pcs Annual
Gas Connector: 300,000pcs Per Month
Water Connectors: 5,000,000m Annual
Packaging & Shipping
No Unacceptable Packaging Material or Bamboo Products Used as Packing
